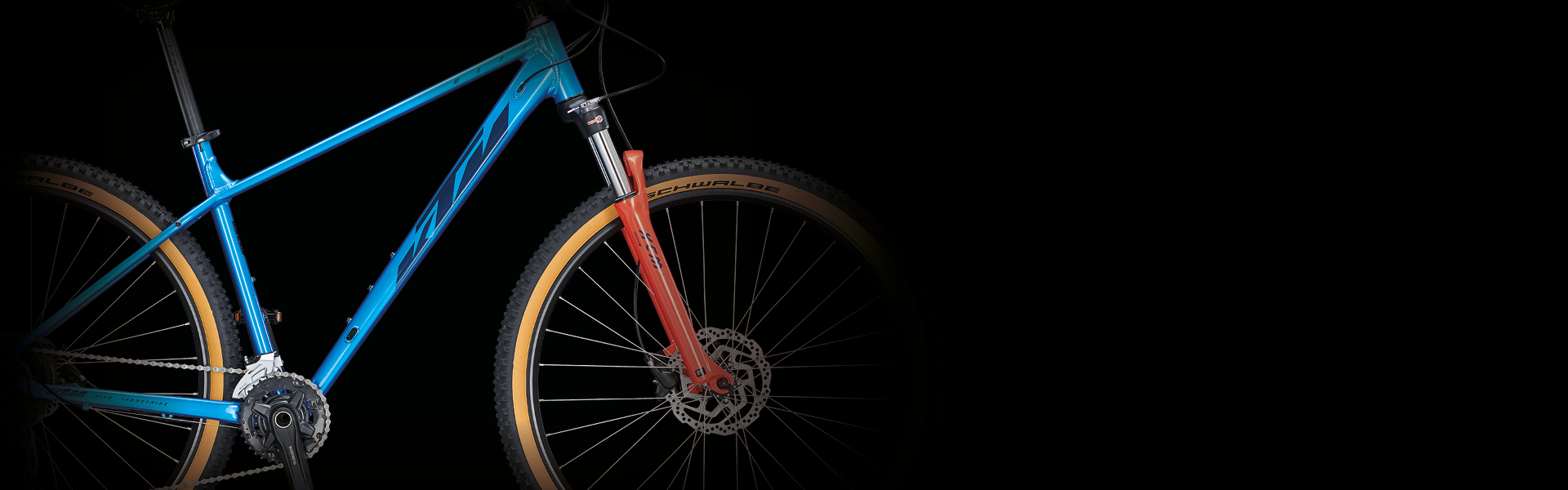

A Relationship You Can Trust. Featuring a new improved frame for 2021 the ULTRA builds on its outstanding reputation. The strong and extra light aluminium frame offers perfect performance for everyday life and on the trails. We have lengthened the top tube and slackened the head angle to make this Ultra the most stable, fastest, and fun one yet. Integrated cables improve the bikes aesthetics. The cheaper ULTRAs do not have a thru axle, but as always, they are ready for mounting kickstand, rack, and mudguards. Some of the models are also available in 27,5-inch version. With the ULTRA you definitely have a wide range of use, without blowing up your piggy bank.
Specification
Specification
| FRAME | 29" Alloy 6061 MTB M1110 |
|---|---|
| FORK | Suntour XCM RL DS 29" 100mm remote |
| R. DERAILL. | Shimano Deore M592-SGS |
| F. DERAILL. | Shimano Alivio M3120 |
| SHIFTLEV. | Shimano Alivio SL-M3100 |
| CRANKSET | Shimano MT2102 36-22 |
| SPROCKET | Shimano HG200-9 / 11-36 |
| CHAIN | Shimano HG53 |
| BRAKE | Shimano MT200 2-Piston |
| ROTOR | Shimano RT10 CL 180 / 160 |
| WHEEL F | KTM Line - Shimano HB-TX505 CL 32H QR / KTM 29" 32H ROCKY 22 RX 622x22 / RM 2.0 INOX silver |
| WHEEL R | KTM Line - Shimano FH-TX505 CL 32H QR / KTM 29" 32H ROCKY 22 RX 622x22 / RM 2.0 INOX silver |
|---|---|
| TIRE F | Schwalbe RAPID ROB K-Guard 57-622 |
| TIRE R | Schwalbe RAPID ROB K-Guard 57-622 |
| GRIP | KTM Comp Lock |
| BAR | KTM Comp Riser 15 720mm |
| STEM | KTM Comp 7° |
| HEADSET | Ritchey Zero Logic PRESS FIT 1-1/8" 15mm cover |
| SADDLE | KTM MTB |
| SEATPOST | KTM Comp 27,2 |
| PEDAL | KTM Comp MTB C280DU alloy |
| WEIGHT | 14,8kg |
| PERMISSIBLE TOTAL WEIGHT | 135kg |
Geometry
